1U Quanta Rackmount Server

1U RackmountD52B-1UD51B-1UD51BP-1UD51PS-1UD51PC-1US31A-1U
Model NameQuantaGrid
D52B-1U		QuantaGrid
D51B-1U		QuantaGrid
D51BP-1U		QuantaGrid
D51PS-1U		QuantaGrid
D51PC-1U		QuantaGrid
S31A-1U
FEATUREDefying Physical LimitationsFull-Featured Energy Efficient 2-Socket ServerEnergy Efficient 2-Socket Server with Extreme Storage IOPSPowerful Compact 2-Socket ServerVersatile Compact 2-Way ServerEnergy Efficient, Compact 1U Architecture Envisioned for Space Constrained Data Centers
  • Ultimate Compute and Storage Density
  • Flexible and Scalable I/O options
  • Tool-less HDD/SDD Tray and PCIe Riser Module
  • Quick Deployment and Maintenance
  • Greener and More Powerful
  • Extreme Memory Capacity for Demanding Virtualization Workload
  • Flexible and Scalable I/O Options
  • OCP Decathlete Specification Compliant
  • Ultra Low Latency NVMe Solution
  • Greener and More Powerful
  • Flexible and Scalable I/O Options
  • Ultra Dense Short Chassis
  • Affordable Enterprise Class Performance and Reliability
  • Flexible and Scalable I/O Options
  • Ultra Dense Short Chassis
  • Affordable Enterprise Class Performance and Reliability
  • Flexible and Scalable I/O Options
  • Hybrid Storage Solution
  • Flexible and Scalable I/O Options
  • Enterprise-grade Internal Boot Device
  • Ultra Dense Chassis Design
ProcessorProcessor TypeIntel®Xeon® Processor Scalable Family (refer to the CCL)
Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E3-1200 v5 product family
Intel® Xeon® processor E3-1200 v6 product family
Max. TDP Support
165W
135W (145W with limited conditions)
135W (145W with limited conditions)
135W
135W
Intel® Xeon® processor E3-1200 v5: 80W
Intel® Xeon® processor E3-1200 v6: 72W
Number of Processors
2 Processors
2 Processors
2 Processors
2 Processors
2 Processors
1 Processor
Internal Interconnect
9.6/10.4 GT/s
6.4 / 8.0/ 9.6 GT/s
6.4 / 8.0/ 9.6 GT/s
6.4 / 8.0/ 9.6 GT/s
6.4 / 8.0/ 9.6 GT/s
N/A
L3 Cache
N/A
Up to 45MB
Up to 45MB
Up to 45MB
Up to 45MB
Up to 8MB
Form Factor
1U
1U
1U
1U
1U
1U
DimensionsW x H x D (inch)
17.3 x 1.7 x 30.7
17.244 x 1.7 x 29.21
17.244 x 1.7 x 29.21
17.244 x 1.7 x 24
17.244 x 1.7 x 24
17.2" x 1.7" x 24"
W x H x D (mm)
440 x 43.2 x 780
438 x 43.2 x 742
438 x 43.2 x 742
438 x 43.2 x 609.6
438 x 43.2 x 609.6
438 x 43.2 x 609.2
Chipset
Intel® C621
Intel® C624
Intel® C610
Intel® C610
Intel® C610
Intel® C610
Intel® C236
StorageDefault Configuration
NVMe support
2.5" Hot-plug
3.5" Hot-plug
NVMe support
2.5" Hot-plug
3.5" Hot-plug
N/A
2.5" Hot-plug
3.5" Hot-plug
2.5" Hot-plug
2.5" Fixed
3.5" Hot-plug
2.5" Hot-plug
3.5" Hot-plug
2.5" Fixed
SKU - #1
[All Flash SKU]:

(12) 2.5" hot-plug SATA/ NVMe SSD
N/A
N/A
N/A
N/A
N/A
SKU - #2
[SFF Tiered SKU]:

(8) 2.5" hot-plug SATA/SAS drives + (4) 2.5" hot-plug NVMe/SATA/SAS drives
N/A
N/A
N/A
N/A
N/A
SKU - #3
[Hybrid SKU]:

Option 1
(4) 3.5"/2.5" hot-plug SATA/SAS drives, (4) 9mm NVMe/SATA/SAS drives (optional)

Option 2
(4) 3.5"/2.5" hot-plug SATA/SAS drives, (4) 9mm SATA/SAS drives (optional)
N/A
N/A
N/A
N/A
N/A
Options
N/A
Option 1: (10) 2.5" hot-plug (including (2) optional 2.5" NVMe PCIe SSD)
Option 2: (10) 2.5" hot-plug (require additional LSI SAS/ MegaRAID card to connect to the expander backplane)
Option 3: (4) 3.5" hot-plug, (2) 2.5" fixed SSD
(10)2.5" hot-plug (support PCIe-based interface)
Option 1: (10) 2.5" hot-plug
Option 2: (4) 3.5" hot-plug, (2) 2.5" fixed SSD
Option 1: (10) 2.5" hot-plug
Option 2: (4) 3.5" hot-plug, (2) 2.5" fixed SSD
(4) 3.5"/2.5" hot-plug HDD
(2) 2.5" fixed SSD
MemoryTotal Slots
24
N/A
20
16
8
4
Capacity
Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
Up to 768GB RDIMM
Up to 1536GB LRDIMM
Up to 640GB RDIMM
Up to 1280GB LRDIMM
Up to 512GB RDIMM
Up to 1024GB LRDIMM
Up to 256GB RDIMM
Up to 512GB LRDIMM
Up to 64GB UDIMM
Memory Type
2666 MHz DDR4 RDIMM
2133/2400 MHz DDR4 RDIMM/ LRDIMM
2133/2400 MHz DDR4 RDIMM/ LRDIMM
2133/2400 MHz DDR4 RDIMM/ LRDIMM
2133/2400 MHz DDR4 RDIMM
2133/2400 MHz DDR4 LRDIMM
2133/2400 MHz DDR4 UDIMM
Memory Size
64GB, 32GB, 16GB, 8GB RDIMM
(Refer to CCL)
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
N/A
Expansion SlotDefault Configuration
N/A
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot

Option 2:
(1) PCIe Gen3 x16 LP MD-2
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
(2) PCIe Gen3 x8 LP MD-2

Option 2 :
(this sku does not support any 2.5" PCIe SSD)
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
Option 2:
(1) PCIe Gen3 x8 Quanta LAN mezzanine slot
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 Low profile MD-2
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
Option 2:
(1) PCIe Gen3 x8 Quanta LAN mezzanine slot
(1) PCIe Gen3 x8 Low profile MD-2
(1) PCIe Gen3 x16 OCP LAN mezzanine slot
(1) PCIe Gen3 x8 LP MD-2
(1) PCIe Gen3 x8 OCP mezzanine slot
SKU - #1
[All Flash SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(1) PCIe Gen3 x8 FHHL
N/A
N/A
N/A
N/A
N/A
SKU - #2
Option 1 (3PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(2) PCIe Gen3 x 8 LP MD-2
Option 2 (2PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x 8 FHHL
(1) PCIe Gen3 x16 LP MD-2
N/A
N/A
N/A
N/A
N/A
SKU - #3
Option 1 (3PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(2) PCIe Gen3 x 8 LP MD-2
Option 2 (2PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 LP MD-2
N/A
N/A
N/A
N/A
N/A
Network ControllerLOM
Dedicated (1) GbE management port
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port

Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port

Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
(2) GbE ports (Intel® i350)
Dedicated (1) GbE management port
Option 1:
(2) GbE ports (Intel® i210)
Dedicated (1) GbE management port
Option 2:
(2) GbE ports (Intel® i210 ) + (2) GbE (Intel® i350)
Dedicated (1) GbE management port
Intel® I210 dual-port 1 GbE
Dedicated 1 GbE management port
Optional NIC
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
(more options refer to the CCL)
N/A
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information*
Quanta Intel® i350 dual-port OCP mezzanine
Quanta Intel® X540 dual-port 10GbE BASE-T OCP mezzanine
Quanta Intel® 82599ES dual-port 10G SFP+ OCP mezzanine
(more options refer to the CCL)
Front I/O
(2) USB 3.0 ports
Power/ID/Reset Buttons
Power/ID/Status LEDs
2.5" SKU: None
3.5" SKU: (2) USB 2.0 ports
N/A
2.5" SKU: None
3.5" SKU: (2) USB 2.0 ports
2.5" SKU: None
3.5" SKU: (2) USB 2.0 ports
(2) USB 2.0 ports
Storage ControllerOnboard
Intel® 621/ 624:
14x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Support (2) SATADOM
(2) SATADOM
Intel® 610
(10) SATA 6Gb/s ports
SATA RAID 0, 1, 10
Intel® 610:
(10) SATA 6Gb/s ports
SATA RAID 0, 1, 10
Intel® C236:
8x SATA 6Gb/s ports
SATA RAID 0, 1, 5, 10
Optional Controller
Quanta LSI® 3216 12Gb/s SAS mezzanine
Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(2) PCIe M.2 support with M.2 adapter for boot optimization (option)
N/A
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information*
Quanta LSI® 3008 12Gb/s SAS mezzanine, RAID 0,1,10
Quanta LSI® 3108 12Gb/s RAID mezzanine, RAID 0, 1, 5, 10; RAID 6 requires additional RAID key
Power Supply
(1+1) High efficiency redundant hot-plug Platinum/Titanium 500W/800W* PSU
(detailed PSU options please refer to "ordering info" or "CCL")
1200W AC, Redundant, 86 mm (Platinum)
800W AC, Redundant, 86 mm (Platinum)
750W AC, Redundant, 86 mm (Gold)
500W AC, Redundant, 86 mm (Platinum)
470W AC, Redundant, 86 mm (Gold)
1200W AC, Redundant, 86 mm (Platinum)
800W AC, Redundant, 86 mm (Platinum)
750W AC, Redundant, 86 mm (Gold)
500W AC, Redundant, 86 mm (Platinum)
470W AC, Redundant, 86 mm (Gold)
700W AC, Redundant, 86 mm (Platinum)
400W AC, Redundant, 86 mm (Platinum)
700W AC, Redundant, 86mm (Platinum)
Option 1 : (2) 400W/700W High efficiency redundant hot-plug PSU
Option 2 : (1) 500W fixed PSU
(default with one PSU only; detailed PSU options please refer to "ordering info" or "CCL")
Onboard Storage
(2) SATADOM (option)
Intel® 610:
(10) SATA 6Gb/s ports
SATA RAID 0, 1, 10
(2) SATADOM
Support (2) SATADOM
Support (2) SATADOM (optional), (1) M.2 SSD (PCIe x4, Size:2260 or 2280)
(2) 2280 M.2
Fan
(8) dual rotor fans (15+1 redundant)
(6) dual rotor fans (11+1 redundant)
(6) dual rotor fans (11+1 redundant)
(5) dual rotor fans (9+1 redundant)
(5) dual rotor fans (9+1 redundant)
(3) dual rotor fans
Video
Integrated ASPEED AST2500 8MB DDR4 video memory
Integrated AST2400 with 8MB DDR3 video memory
Integrated AST2400 with 8MB DDR3 video memory
Integrated AST2400 with 8MB DDR3 video memory
N/A
Integrated AST2400 with 8MB DDR3 video memory
System Management
Redfish ver.,1.0.2
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager
(QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
IPMI v2.0 Compliant, on board "KVM over IP" support
Quanta System Manager
Rear I/O
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial port
(1) GbE RJ45 management port
(1) ID LED
(1) MicroSD slot
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(1) System LED
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(1) Port80 Debug Port (optional)
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or (4) 1G RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(2) USB 3.0 ports
(2) 1GbE RJ45
(1) 1GbE RJ45 management port
(1) Console port on the system
(1) VGA port
Operating Environment
Operating temperature: 5°C to 40°C (can support 45°C under certain situation)
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
TPM
TPM 1.2/2.0 SPI module
Yes (With TPM 1.2 / 2.0 option)
Yes (With TPM 1.2/ 2.0 option)
Yes
(With TPM 1.2 / 2.0 option)
N/A
Yes (With TPM 1.2/ 2.0 option)
Weight (Max. Configuration)
20.7 KG
19.97 (kg)
44.03 (lbs)
20.81 (kg)
45.88 (lbs)
18.46 (kg)
40.70 (lbs)
17.75 (kg)
39.13 (lbs)
17 (kg)
37.48 (Ibs)
OCP Compliance
N/A
OCP Compliant
Non-OCP Compliant
N/A
N/A
Non-OCP Compliant

2U Quanta Rackmount Server

2U RackmountQ72D-2UD52BQ-2UD51B-2U
Model NameQuantaGrid
Q72D-2U		QuantaGrid
D52BQ-2U		QuantaGrid
D51B-2U
FEATUREThe High-density, Widely Flexible, and Powerful Quad Socket ServerScale Along with Your BusinessFull-Featured Energy Efficient 2-Socket Server
  • Powerful 4-socket Server in a 2U chassis
  • High Memory Capacity and Space Efficiency.
  • Ultra-Dense Memory Design
  • Flexible and Scalable I/O Options
  • Ultimate Compute and Storage Density
  • Flexible and Scalable I/O options
  • Tool-less HDD/SDD Tray and PCIe Riser Module
  • Quick Deployment and Maintenance
  • Ideal for Mail-server, Database, E-commerce and High-performance Computing (HPC)
  • Greener and More Powerful
  • Full-Featured Design for Demanding Storage and Computing Workload
  • Flexible and Scalable I/O Options
ProcessorProcessor Type
Intel®Xeon® Processor Scalable Family
Intel®Xeon® Processor Scalable Family
Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Max. TDP Support
205W
205W
(Refer to CCL)
145W
Number of Processors
4 Processors
2 Processors
2 Processors
Internal Interconnect
9.6/10.4 GT/s
9.6/10.4 GT/s
6.4 / 8.0/ 9.6 GT/s
L3 Cache
N/A
N/A
Up to 45MB
Form Factor
2U
2U
2U
DimensionsW x H x D (inch)
14.48 x 3.44 x 34.1
17.3 x 3.4 x 30.7
17.6 x 3.44 x 29.33
W x H x D (mm)
444 x 87.5 x 866
440 x 87.5 x 780
447 x 87.5 x 745
Chipset
Intel® C621
Intel® C624
Intel® C621
Intel® C624
Intel® C610
StorageDefault Configuration
N/A
NVMe support
2.5" Hot-plug
3.5" Hot-plug
2.5" Hot-plug
3.5" Hot-plug
SKU - #1
(16) NVMe/ SAS/ SATA SFF Drives
[12x LFF SATA/SAS SKU]:

Front Storage: (12) 3.5"/2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug NVMe/SATA/SAS (optional)
N/A
SKU - #2
(16) SAS/SATA HDD/SSD
[12x LFF Tiered SKU]:

Front Storage: (8) 3.5"/2.5" hot-plug SATA/SAS + (4) 2.5" hot-plug NVMe/SATA/SAS SSD
Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
N/A
SKU - #3
N/A
[24x SFF PtP SKU]:

Front Storage: (16) 2.5" hot-plug SATA/SAS + (8) 2.5" hot-plug NVMe SSD
Rear Storage: (2) 2.5" hot-plug SATA (optional)
N/A
SKU - #4
N/A
[24x SFF SAS3224 Paddle SKU]:

Front Storage: (24) 2.5" hot-plug SATA/SAS w/ SAS 3224
Rear Storage: (2) 2.5" hot-plug NVMe/SATA (optional)
N/A
SKU - #5
N/A
[24x SFF Expander SKU]:

Option 1:
Front Storage: (24) 2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug NVMe (optional)
Option 2:
Front Storage: (24) 2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
N/A
SKU - #6
N/A
N/A
N/A
Options
N/A
N/A
Option 1:
(24) 2.5" hot-plug
(2) optional rear 2.5" hot-plug SATA/SAS
(2) optional rear 2.5" hot-plug PCIe SSD
Option 2:
(12) 3.5" hot-plug
(2) optional rear 2.5" hot-plug SATA/SAS
(2) optional rear 2.5" hot-plug PCIe SSD
MemoryTotal Slots
48
24
24
Capacity
Up to 3TB RDIMM/LRDIMM
Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
Up to 768GB RDIMM
Up to 1536GB LRDIMM
Memory Type
2666 MHz DDR4 RDIMM
2666 MHz DDR4 RDIMM
(24) 2133/2400 MHz DDR4 RDIMM
(24) 2133/2400 MHz DDR4 LRDIMM
Memory Size
64GB, 32GB, 16GB, 8GB RDIMM
64GB, 32GB, 16GB, 8GB RDIMM
(Refer to CCL)
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
Expansion SlotDefault Configuration
(1) PCIe Gen3 x16 OCP mezzanine card
(2) PCIe Gen3 x24 riser board
- (2) PCIe Gen3 x8 FHHL
- (2) PCIe Gen3 x16 FHHL ( option : (2) GPGPU )
(1) PCIe Gen3 x32 riser board
- (2) PCIe Gen3 x16 HHHL
(1) PCIe Gen3 x16 SAS mezzanine card
N/A
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(2) PCIe Gen3 x8, LP MD-2
(1) PCIe Gen3 x8 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
Option 2:
(1) PCIe Gen3 x16 LP MD-2
(1) PCIe Gen3 x8 LP MD-2
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
SKU - #1
N/A
[12x LFF SATA/SAS SKU]

(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
N/A
SKU - #2
N/A
[12x LFF Tiered SKU]

(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x 8 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
N/A
SKU - #3
N/A
[24x SFF PtP SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 LP MD-2 (must be with SAS add-on card)
N/A
SKU - #4
N/A
[24x SFF SAS3224 Paddle SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
N/A
SKU - #5
N/A
[24x SFF Expander SKU]

Option 1:
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
Option 2:
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(3) PCIe Gen3 x 8 LP MD-2 or (1) PCIe Gen3 x16 + x8 LP MD-2
N/A
Network ControllerLOM
N/A
Dedicated (1) GbE management port
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Optional NIC
Please refer to our Compatible Component List for more information
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
(more options refer to the CCL)
N/A
Front I/O
(1) USB 2.0 ports
Power/ID/Reset Buttons
Power/ID/Status LEDs
(2) USB ports
(1) VGA port (Display Priority: First; one device one time)
(2) USB 2.0 ports
Storage ControllerOnboard
N/A
Intel® 621/ 624:
14x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Intel® 610:
(10) SATA 6Gb/s ports
SATA RAID 0, 1, 10
Optional Controller
Quanta LSI® 3216 12Gb/s SAS mezzanine
Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
Quanta LSI® 3216 12Gb/s SAS mezzanine
Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(2) PCIe M.2 support with M.2 adapter for boot optimization (option)
N/A
Power Supply
Option 2: (2) High efficiency hot-plug 2200W PSU, 80 Plus Platinum
1+1 High efficiency redundant hot-plug Platinum/Titanium 800W/1200W PSU
(detailed PSU options please refer to "ordering info" or "CCL")
1200W AC, Redundant, 86 mm (Platinum)
800W AC, Redundant, 86 mm (Platinum)
750W AC, Redundant, 86 mm (Gold)
500W AC, Redundant, 86 mm (Platinum)
470W AC, Redundant, 86 mm (Gold)
Onboard Storage
(2) 2280/2210 SATA/PCIe M.2 (option)
(2) SATADOM (option)
Support (2) SATADOM
Fan
(5) dual rotor fans (9+1 redundant)
(6) dual rotor fans (11+1 redundant)
(4) dual rotor fans (7+1 redundant)
Video
Integrated ASPEED AST2500 8MB DDR4 video memory
Integrated ASPEED AST2500 8MB DDR4 video memory
Integrated AST2400 with 8MB DDR3 video memory
System Management
Redfish v1.0.2
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)
Redfish v1.0.2
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
Rear I/O
N/A
(2) USB 3.0 ports
(1) VGA port (Display Priority: Second; one device one time)
(1) RS232 serial port
(1) GbE RJ45 management port
(1) ID LED
(1) MicroSD slot
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(1) Port80 Debug Port (optional)
Operating Environment
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 40°C (can support 45°C under certain situation)
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 90%RH
TPM
Yes (With TPM 1.2/ 2.0 option)
TPM 1.2/2.0 SPI module
Yes (With TPM 1.2/ 2.0 option)
Weight (Max. Configuration)
N/A
35 KG
24.92 (kg)
54.94 (lbs)

4U Quanta Rackmount Server

4U RackmountS400-X44EUQ71L-4UQSSC-S4R
Model NameSTRATOS

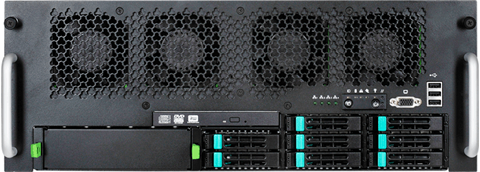

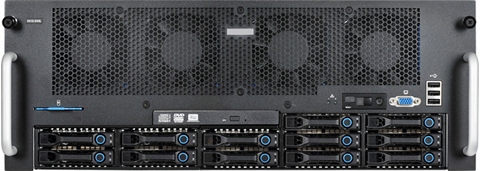

S400-X44EU*EOL		QuantaGrid

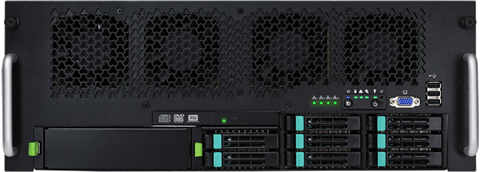

Q71L-4U		QSSC-S4R*EOL
FEATUREPerformance & Cost Optimized 4-Socket ServerPowerful Enterprise Grade 4U 4-Socket Server with Unprecedented RAS and ScalabilityEnterprise Grade 4U 4-Socket Server
  • Ideal for HPC, mission-critical applications such as ERP, CRM, memcached, data analysis, and virtualization
  • Upgrade with Higher Computing Performance
  • Impressive I/O and Networking Scalability
  • High Availability
  • Unsurpassed Computing Power supporting up to Four Intel® Xeon® E7-4800 v3/ v4, E7-8800 v3/ v4 Series
  • SAS 3.0 Ready & NVMe PCIe SSDs Support
  • Extraordiry Memory Capacity with up to 96 DIMM Slots
  • Astonishing Expandability with 10 Standard PCIe 3.0 Slots & 3 Mezzanine Slots
  • Unsurpassed Computing Power
  • High Memory Capacity – up to 1TB
  • Reliable Internal 4TB Storage
ProcessorProcessor Type
Intel® Xeon® processor E5-4600 product family
Intel® Xeon® processor E7-4800 v2 product family
Intel® Xeon® processor E7-4800 v3 product family
Intel® Xeon® processor E7-4800 v4 product family
Intel® Xeon® processor E7-8800 v3 product family
Intel® Xeon® processor E7-8800 v4 product family
Intel® Xeon® processor 7500 series
Intel® Xeon® processor E7-4800 product family
Max. TDP Support
130W
165W
130W
Number of Processors
4 Processors
4 Processors
4 Processors
Internal Interconnect
6.4 / 7.2 / 8.0 GT/s
6.4 / 7.2 / 8.0 / 9.6 GT/s
Up to 6.4 GT/s
L3 Cache
Up to 30MB
Up to 60MB
Up to 30MB
Form Factor
4U
4U
4U
DimensionsW x H x D (inch)
16.69 x 6.8 x 27.71
16.69 x 6.8 x 27.71
16.69 x 6.8 x 27.71
W x H x D (mm)
424 x 174 x 704
424 x 174 x 704
424 x 174 x 704
ChipsetChipset
Intel® C602
Intel® C602J
Intel® E7500 chipset + ICH10R
StorageDefault Configuration
N/A
2.5" Fixed
2.5" Hot-plug
Options
(8) 2.5" hot-plug
(12) 2.5" hot-plug (*up to (2) hot-plug PCIe SSD support)
(8) 2.5" hot-plug
MemoryTotal Slots
48
96
64
Capacity
Up to 768GB RDIMM
Up to 6TB RDIMM
Up to 6TB LRDIMM
Up to 1TB RDIMM
Memory Type
1600/1333 MHz DDR3 RDIMM
E7-4800 v2 : 1600/1333 MHz DDR3 RDIMM
E7-4800 v3, v4 : 1866 MHz DDR4 RDIMM
E7-8800 v3, v4 : 1866 MHz DDR4 RDIMM
1333/1066 MHz DDR3 RDIMM
Memory Size
16GB, 8GB RDIMM
E7-4800 v2 : 64GB, 32GB, 16GB, 8GB DDR3 RDIMM
E7-4800 v3, v4/E7-8800 v3, v4 : 64GB, 32GB, 16GB, 8GB DDR4 RDIMM
16GB, 8GB, 4GB, 2GB RDIMM
Expansion SlotDefault Configuration
(4) PCIe Gen3 x16
(4) PCIe Gen3 x8
(1) PCIe Gen3 x4
(1) PCIe Gen3 x8 mezzanine slot
(2) PCIe Gen3 x16, HH 3/4L ((1) has HS feature)
(8) PCIe Gen3 x8, HHHL ((3) has HS feature)
(1) PCIe Gen3 x8 dedicated storage mezzanine slot
(1) PCIe Gen3 x8 dedicated Network mezzanine slot
(4) PCIe Gen2 x8
(3) PCIe Gen2 x4
(1) PCIe Gen2 x16
(1) PCIe Gen1 x4
(1) PCIe Gen2 x8 dedicated SAS mezzanine slot
Network ControllerLOM
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
(2) Intel® 82576 supports quad 1GbE ports
Optional NIC
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information
Front I/O
SATA DVD-ROM
SATA DVD-ROM
(3) USB 2.0 ports
(1) VGA port
(5) 25" half height device bay
(3) USB 2.0 ports
(1) VGA port
Storage ControllerOnboard
Intel® 602:
SATA RAID 0, 1, 5, 10
SAS RAID 0, 1, 5, 10 ebled with upgrade ROM options
Intel® 602J:
(4) SATA 3Gb/s ports
(2) SATA 6Gb/s ports
SATA RAID 0, 1, 5, 10
Intel® ICH10R
SATA RAID 0, 1, 5, 10
Optional Controller
Please refer to our Compatible Component List for more information
Please refer to our Compatible Component List for more information
N/A
Power Supply
2+2 High efficiency redundant hot-plug 1100W PSU, 80 Plus Gold
2+2 High efficiency redundant 1600W PSU, 80 Plus Platinum
2+2 High efficiency redundant hot-plug 850W PSU, 80 Plus Gold
Onboard Storage
N/A
(2) USB Flash Drives
N/A
Fan
(8) hot-plug system fans
(8) hot-plug system fans
(8) hot-plug system fans
Video
Integrated AST2300 with 8MB DDR3 Video memory
Integrated AST2400 with 8MB DDR3 Video memory (option)
IBMC (Pilot II) with supported VGA
System Management
IPMI v2.0 Compliant, on board "KVM over IP" support
IPMI v2.0 Compliant, on board "KVM over IP" support
Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional)
IPMI v2.0 Compliant
Rear I/O
(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 magement port
(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 magement port
(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial port
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
TPM
Yes (With TPM 1.2 option)
Yes (With TPM 1.2 option)
No
Weight (Max. Configuration)
29.68 (kg)
65.43 (lbs)
34.68 (kg)
76.46 (lbs)
N/A
Disclosures
* All specifications and figures are subject to change without prior notice
*EOL This products are 'end of life'
